H40 SoLAR PANEL CLEANING DRONE
Consider using this if you need to provide more context on why you do what you do. Be engaging. Focus on delivering value to your visitors.
Competitive pricing with no middlemen.
CE-certified products with rigorous quality control.
Professional support from pre-sales to after-sales.

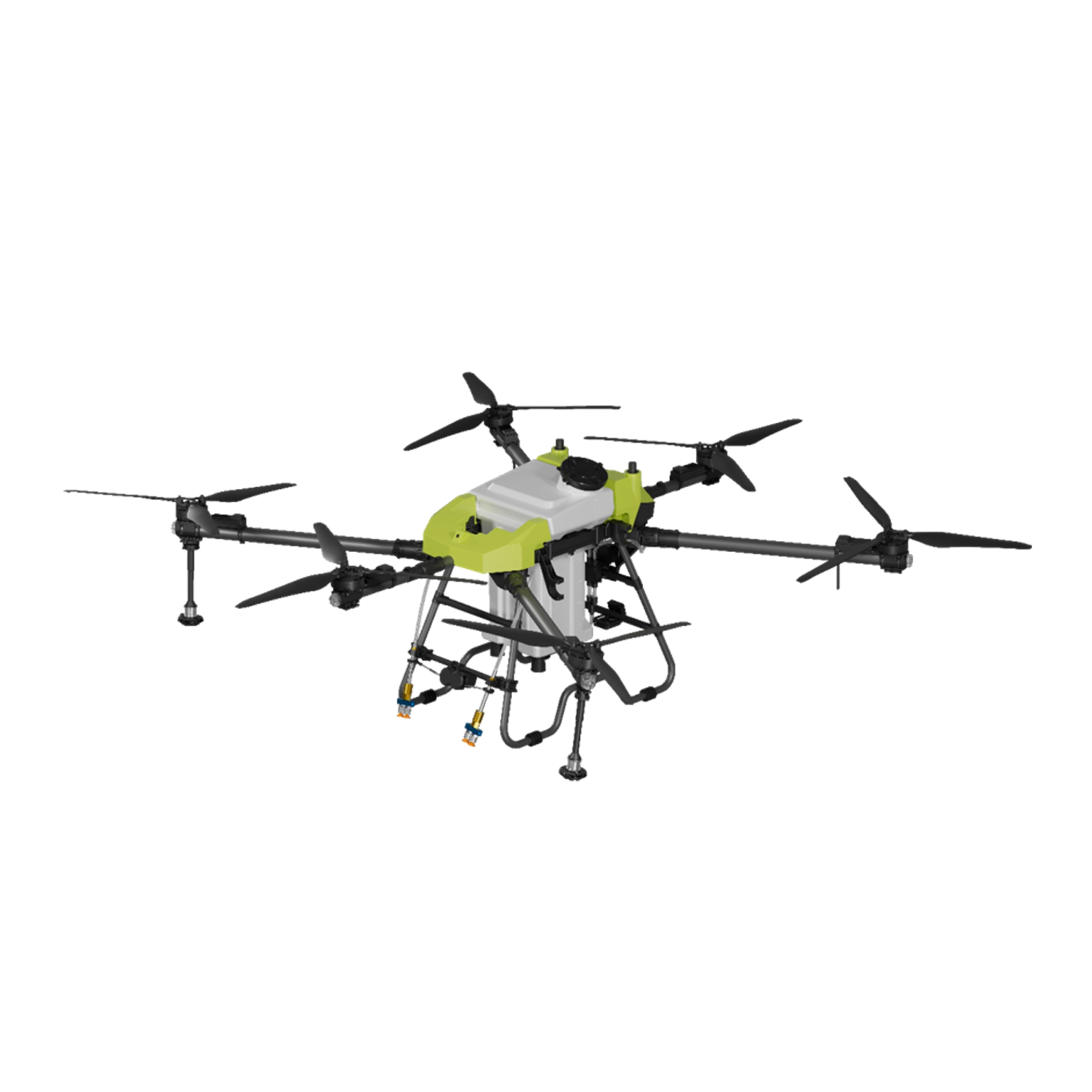

H40 Photovoltaic Cleaning Drone
A Smarter Way to Clean Solar Panels

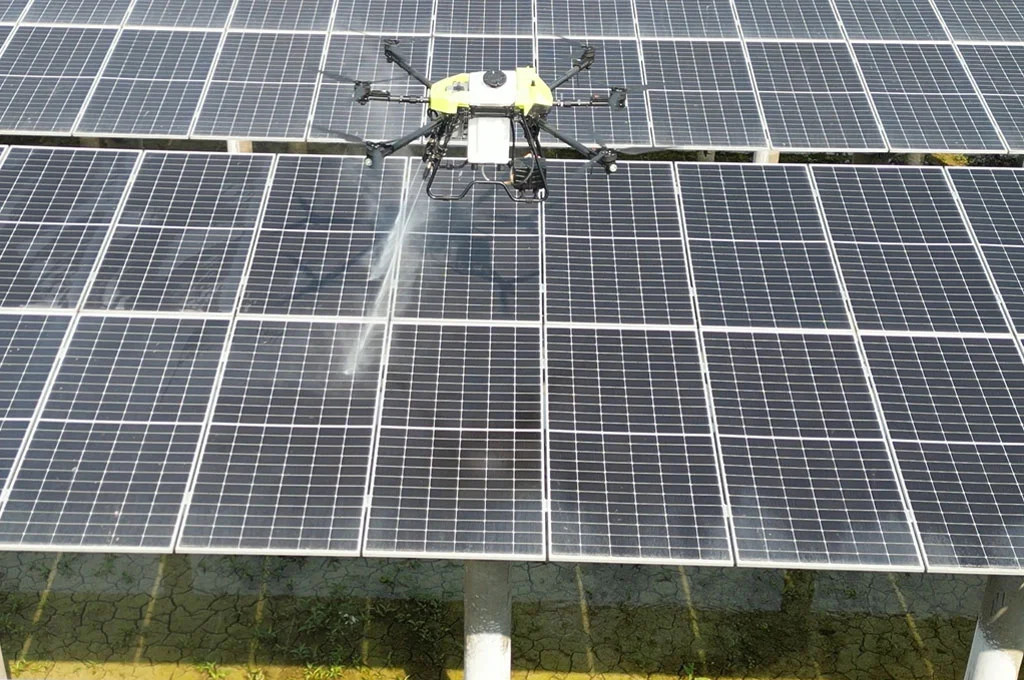

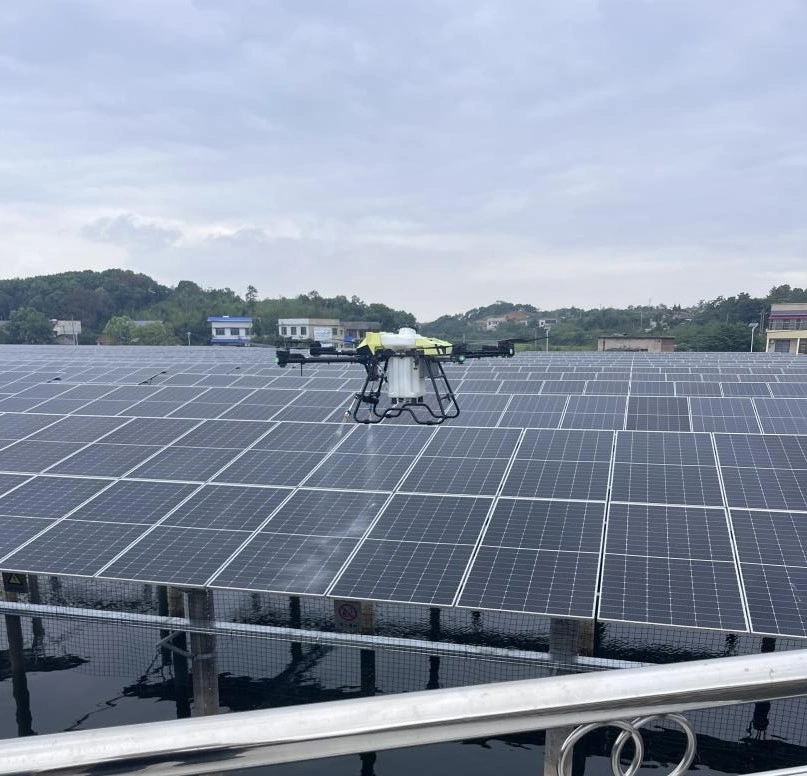

Our solar panel cleaning drone automates the cleaning process with precise flight control and efficient water cleaning, helping reduce manual labor, improve cleaning efficiency, and maintain consistent panel performance.
Intelligent Features for Efficient Cleaning
Advanced flight control, RTK positioning, visual monitoring, and safety functions enable precise, efficient, and reliable solar panel cleaning.
Visual Flight Control
Visualize flight routes and monitor real-time flight data through the ground station.
Intelligent Safety System
Automatic return-to-home, electronic fencing, and configurable safety protection.
High-Precision Positioning
GNSS + RTK positioning delivers centimeter-level flight accuracy.
Intelligent Cleaning
FPV vision and adjustable water flow enable precise, targeted cleaning.
Flexible Operation
One-button control, obstacle avoidance, and modular design support diverse applications.
Parameters
Basic Parameters
|
H40
|
|
|---|---|
|
Drone Size (Unfold) |
1875mm*2035mm*890mm |
|
Drone Size (fold) |
1290mm*760mm*890mm |
|
Number of Prepeller |
6 rotors, three-blade propeller |
|
Drone Weight (with no load) |
44.2kg |
|
Take off weight (fully loaded) |
84.2kg |
|
Battery |
18s 24000mAh (Standard Two Batteries) |
|
Charger |
7200w (Input Voltage 90-264ac) |
|
Speed |
0.2-10m/s |
|
Flight Duration |
7-21min |
Cleaning Parameters
|
Water Tank Capacity |
40L
|
|
Flow Rate |
6-8L/min |
|
Cleaning Nozzle |
4 fan-shaped cleaning nozzles, nozzle water outlet angle 15° |
|
Cleaning Method |
Swing arm cross cleaning |
|
Cleaning Width |
Horizontal 3 meters wide |
|
Nozzle Pressure |
0.7Mpa |
Features
The Solar Panel Cleaning Drone is designed to make solar panel cleaning faster, safer, and easier to manage, especially across large or hard-to-access sites.
- High Cleaning Efficiency — A 3 m cleaning width and flow rate of up to 8 L/min enable efficient coverage for large solar installations.

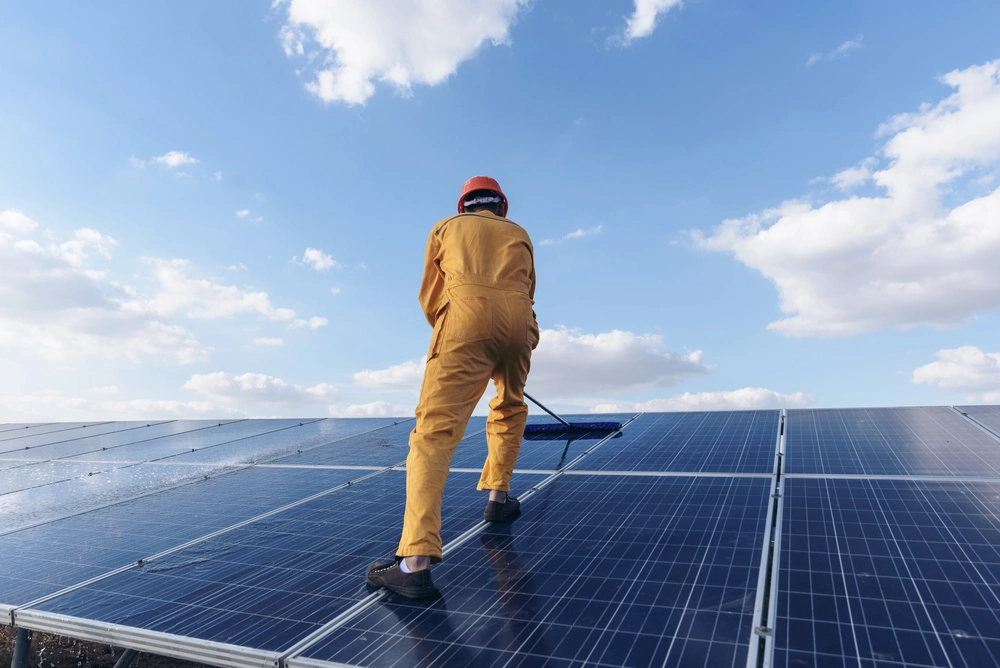

- Reduced Manual Labor — Automated flight and cleaning operations reduce the need for workers to perform repetitive and physically demanding cleaning tasks.
- Precise Panel Coverage — GNSS + RTK positioning and visual monitoring help maintain accurate flight paths and consistent cleaning coverage.
- Safe Remote Operation — Obstacle avoidance, electronic fencing, automatic return-to-home, and multiple safety alerts support reliable unmanned operation.
- Easy Transport & Deployment — The foldable structure and lightweight design make the drone easier to transport, store, and deploy at different sites.
- Adaptable to Complex Sites — High mobility and flexible operation allow cleaning in mountainous areas, lakes, and other locations where conventional equipment is difficult to use.

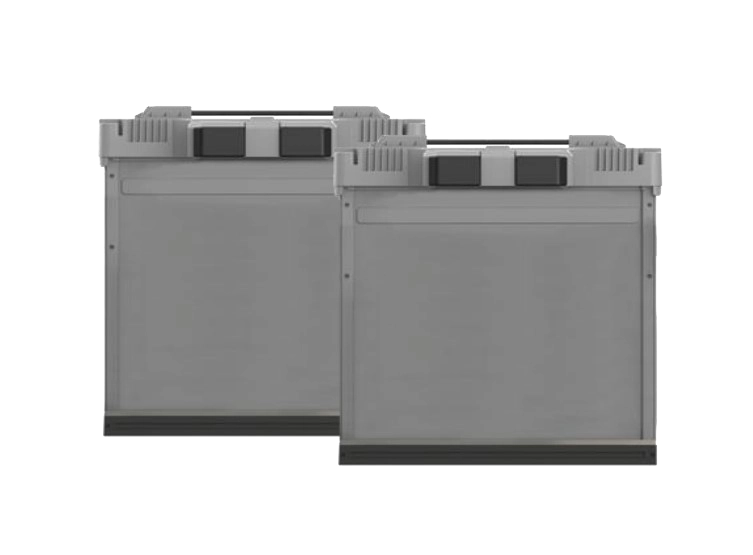

Battery
67.5V 18S 24,000mAh battery with advanced cell technology and an upgraded thermal management system, supporting fast charging at temperatures up to 65°C.

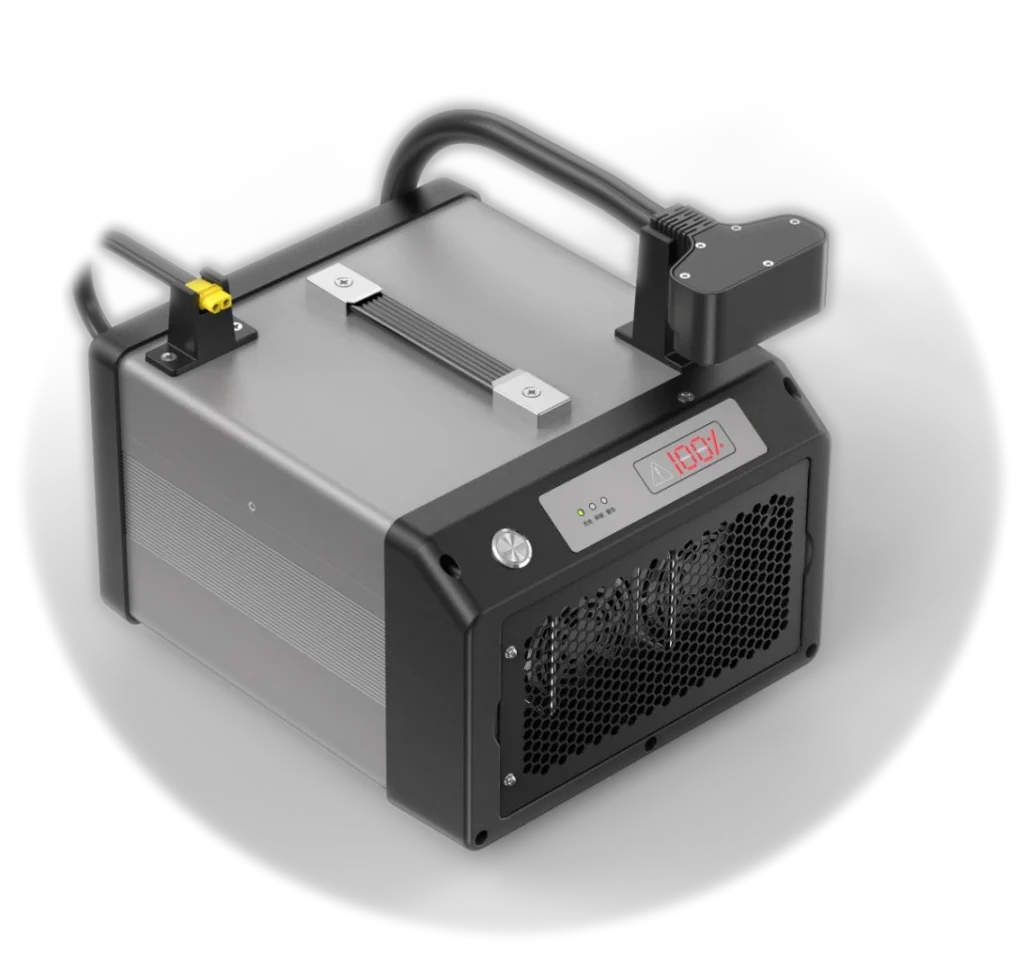

Intelligent charger
Supports 3600W home charging and 7200W fast charging outdoors, with over-temperature protection and forced-air cooling for safe, reliable operation. A full charge takes just 12 minutes, minimizing downtime and keeping the drone ready for continuous operation.

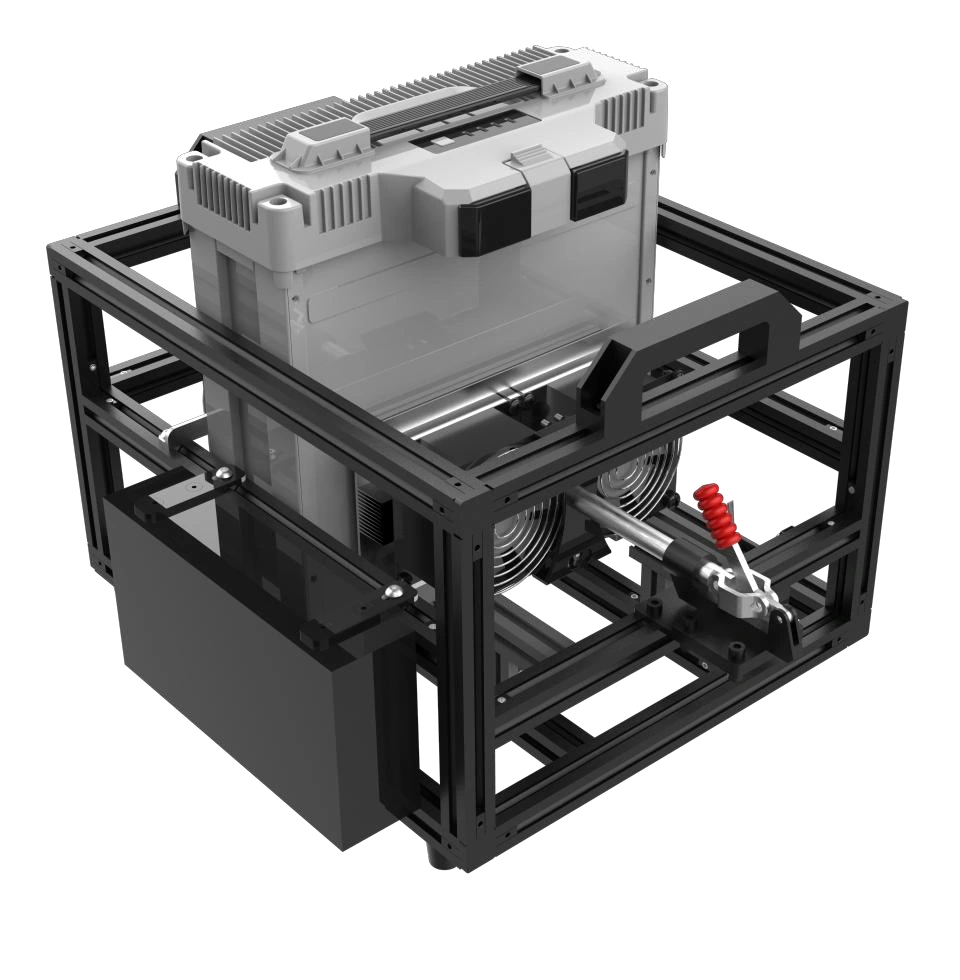

Semiconductor type “refrigerator”
Starts cooling automatically within 3 seconds, reducing battery temperature by up to 15°C per minute for faster high-temperature charging, improved thermal efficiency, and longer battery life.

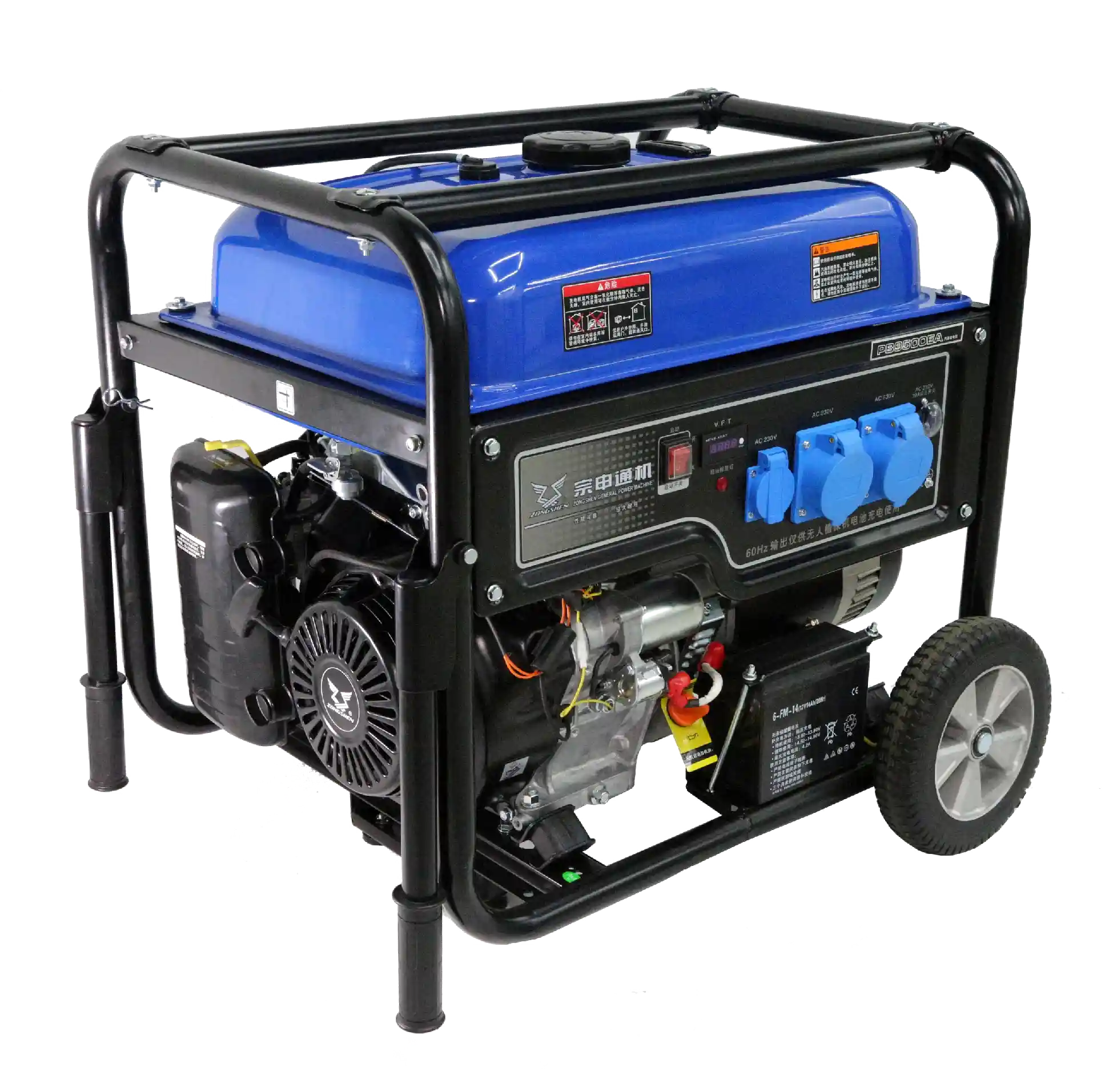

High-Power Generator
The 9000W generator provides reliable power with forced-air cooling and transistor ignition, while the wheeled design makes transportation easy and efficient.
Application

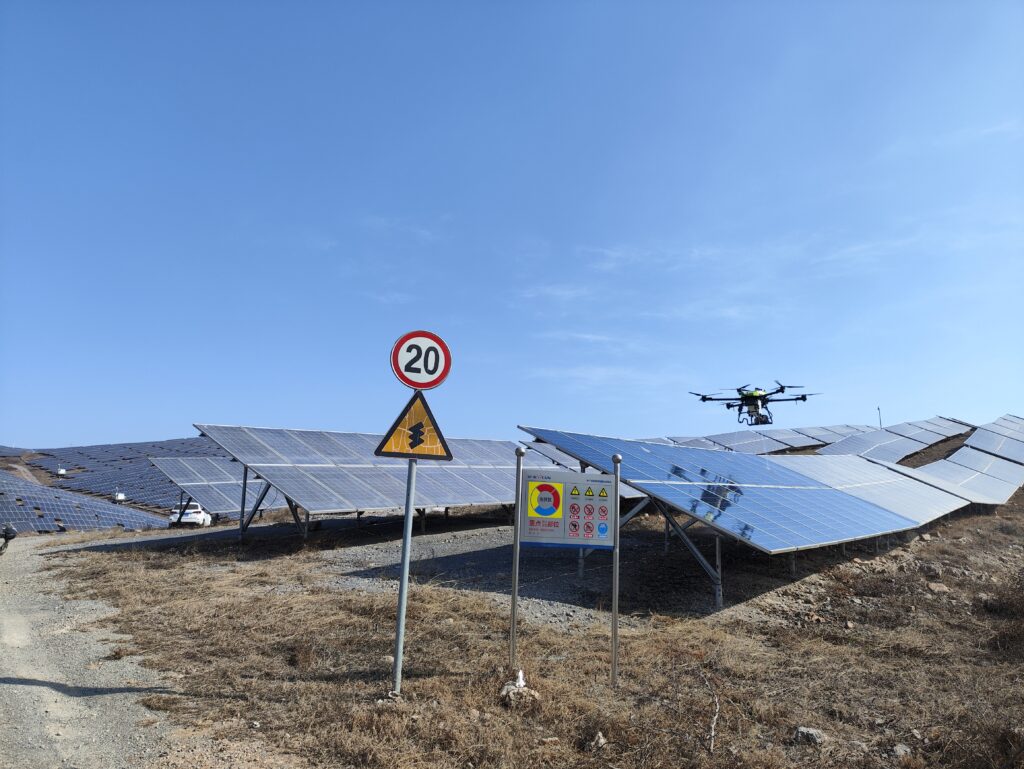

Designed for diverse solar sites, our cleaning drone is ideal for mountainous solar farms, fishery-solar hybrid projects, distributed PV systems, and other hard-to-access photovoltaic installations.
Request more info
Discover how our Solar Panel Cleaning Drone can make PV cleaning more efficient, precise, and accessible. Complete the form below to share your project requirements and receive a customized cleaning solution and professional quote.
