skid steer loader
Built for Versatile Performance Across Diverse Jobsites
The ML525Y mini skid steer combines powerful performance, precise control, compact maneuverability, and versatile attachment compatibility to handle a wide range of demanding jobs with ease.
Operator-Friendly Control
The ML525Y mini skid steer features dual ergonomic joystick controls for smooth, simultaneous operation of the drive system and boom/bucket, improving maneuverability and jobsite efficiency.
An operator presence system automatically stops machine movement when the operator leaves the platform, while integrated warning indicators provide quick access to critical machine status. The spring-cushioned operator platform enhances comfort and keeps the operator away from mud and debris during demanding skid steer loader operations.
Easy Maintenance & Reliable Performance

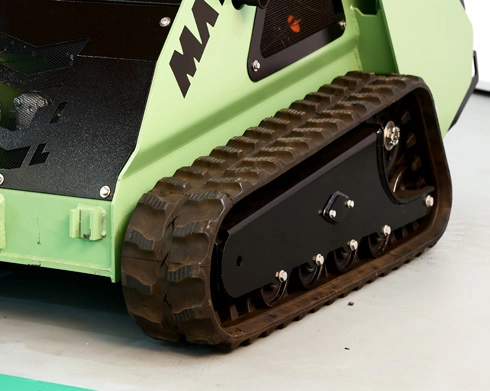

The ML525Y mini skid steer delivers reliable power, low fuel consumption, and long service life for demanding skid steer loader applications. Easy access to key components simplifies maintenance, while the high-mounted track sprocket reduces ground-contact wear and extends service life.
Versatile & Compact Design
A universal mounting plate allows the ML525Y mini skid steer to connect a wide range of attachments for greater versatility. Optional dual hydraulic auxiliary flow supports low-flow attachments, while the compact narrow design makes it easy to maneuver and work in confined spaces where larger skid steer loaders cannot operate.

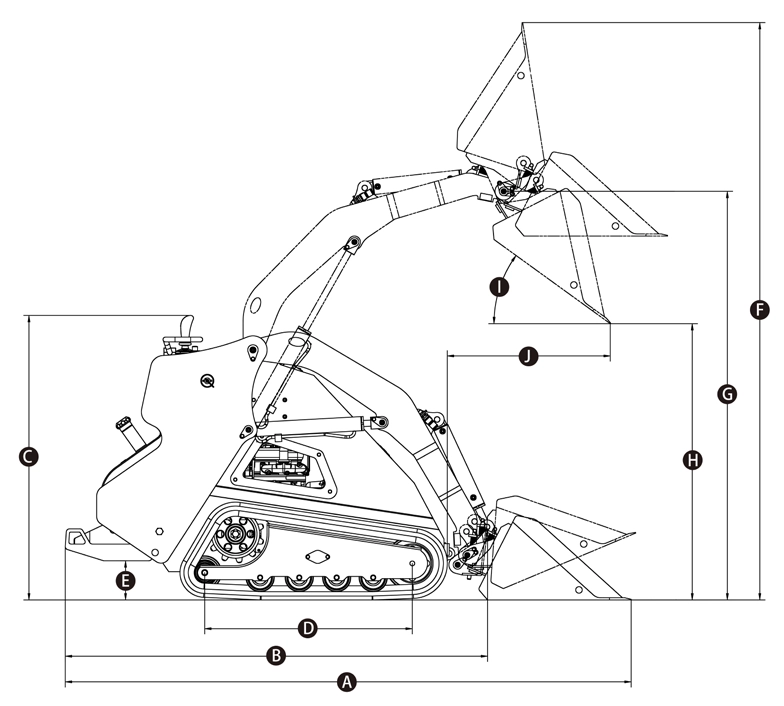

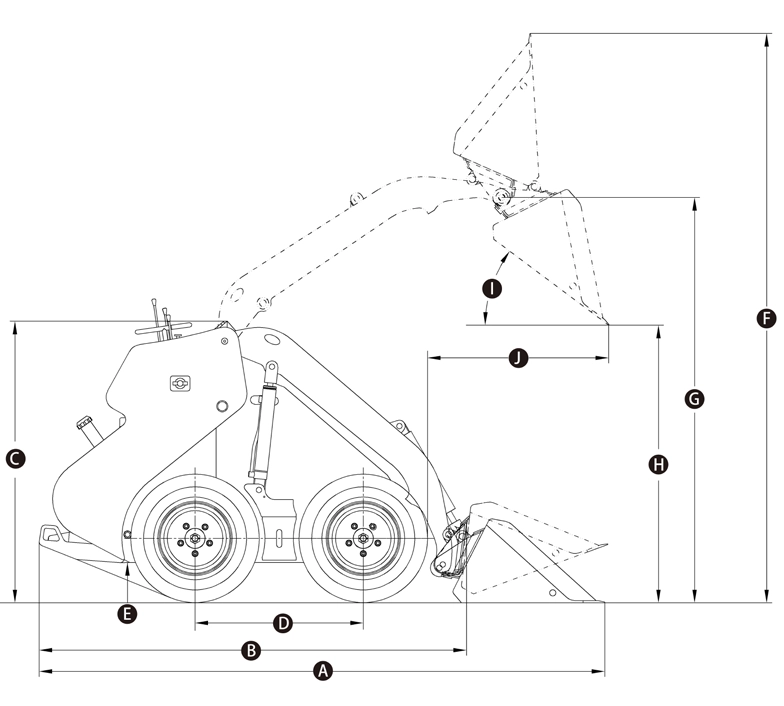

Dimensions
A: Overall Length (with Bucket)
B: Overall Length (without Bucket)
C: Overall Height
D: Wheelbase
E: Ground Clearance
F: Operating Height
G: Hinge Pin Height
H: Dump Height
I: Dump Angle
J: Reach (Fully Raised)
Dimensions
|
ML525Y
|
|
|---|---|
|
A: Length (w/Bucket) |
102(2603) in(mm) |
|
B: Length (w/out Bucket) |
76(1942) in(mm) |
|
Overall width (w/out Bucket) |
41(1050) in(mm) |
|
C: Overall Height |
52(1309) in(mm) |
|
D: Wheelbase |
38(955) in(mm) |
|
E: Ground Clearance |
5(128) in(mm) |
|
F: Operating Height |
105(2656) in(mm) |
|
G: Hinge Pin Height |
74(1880) in(mm) |
|
H: Dump Height |
50(127-1) in(mm) |
|
I: Dump Angle |
36 degrees |
|
J: Dump Reach |
30(750) in(mm) |
|
Travel Speed |
4.3(6.9) mph(km/h) |
|
Tipping Capacity |
1967(892) lb(kg) |
|
Operating Capacity (35%) |
688(312) lb(kg) |
|
Machine Weight |
2315(1050) lb(kg) |
Engine
|
Engine |
Kubota D1105/Yanmar 3TNV80F
|
|
Horsepower (SAE Gross) |
24.7(18.2)/24.2(17.8) hp(kW) |
|
Displacement |
67.1(1.1)/77.3(1.267) in³(l) |
|
Fuel Type |
Diesel |
|
Air Cleaner |
Heavy-duty dual element |
|
Cooling System |
Liquid Cooled |
|
Fuel Tank |
9.24(35) gal(l) |
|
Oil Capacity |
1.35(5.1)/0.8(3) gal(l) |
|
Number of Cylinders |
3 |
Operation
|
Pump Type |
Gear type
|
|
Pump Capacity |
12.6(48) gal/m(l/m) |
|
Auxiliary Pump Relief |
3046(210) psi(bar) |
Tracks
|
Track Width |
7.9(200) in(mm)
|
|
Rollers |
4 Each side |
|
Ground Pressure |
3.55(24.5) psi(kPa) |
Features
Designed for powerful, versatile, and easy-to-maintain performance, this mini skid steer combines ergonomic controls, reliable power, four-wheel drive, and a compact design for demanding jobsites.
- Dual Ergonomic Joystick Control — Dual joysticks allow operators to control the drive system and boom simultaneously for smooth and intuitive operation.
- Operator Safety & Comfort — A spring-cushioned platform keeps operators away from mud, while the operator presence system automatically suspends machine movement when they leave the platform.
- Reliable Power & Low Noise — International-brand engines deliver strong, reliable performance with lower fuel consumption, long service life, easy maintenance, and reduced noise.
- Easy Maintenance — Convenient access to the radiator, electrical system, and hydraulic valves simplifies routine inspection and maintenance.
- Versatile Attachment Compatibility — A universal mounting plate supports a wide range of attachments, while optional dual hydraulic auxiliary flow accommodates low-flow, dual-function attachments.

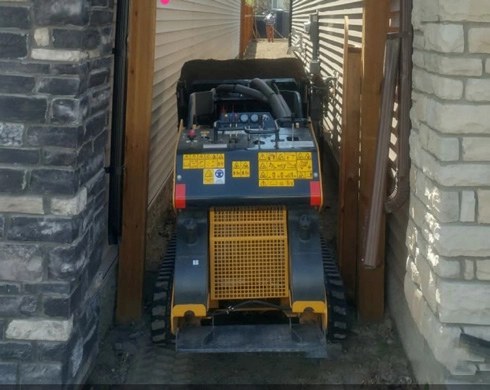

- Compact & Highly Maneuverable — The narrow overall width allows the machine to move easily through confined spaces where larger conventional equipment cannot operate.
Gallery
Versatile Attachments for Multiple Applications

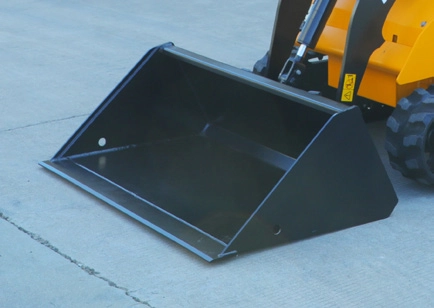

Standard Bucket

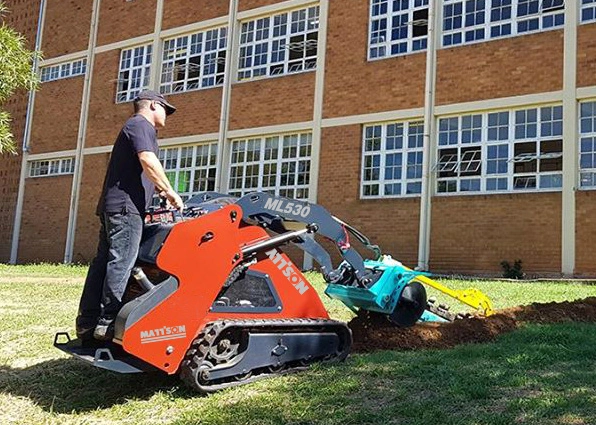

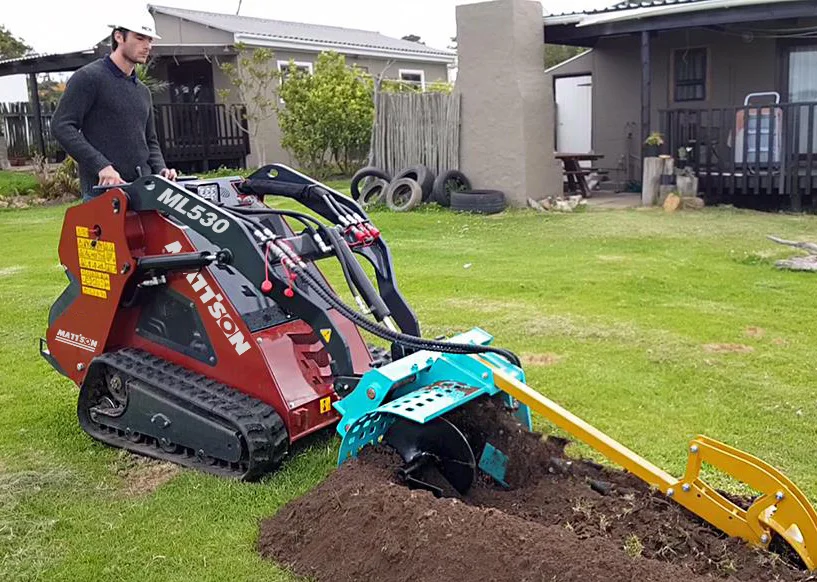

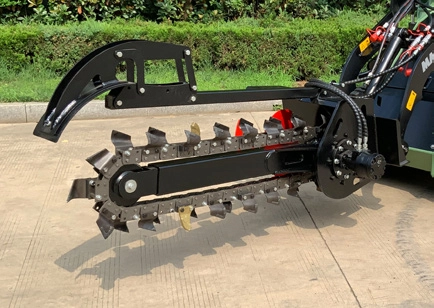

Trencher

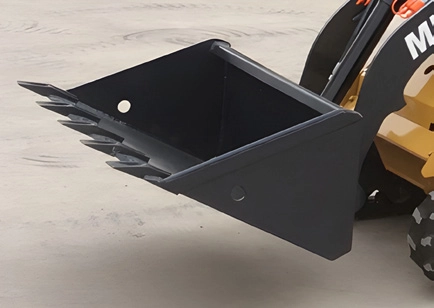

Teeth Bucket

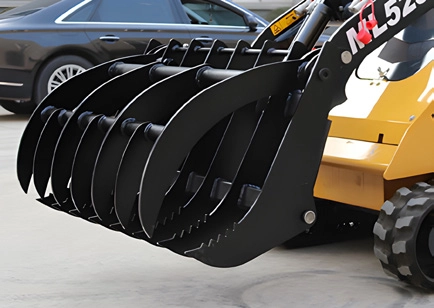

Grappler

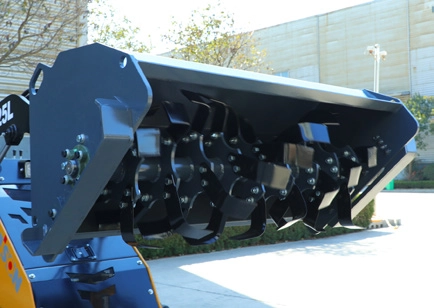

Rotary Tiller

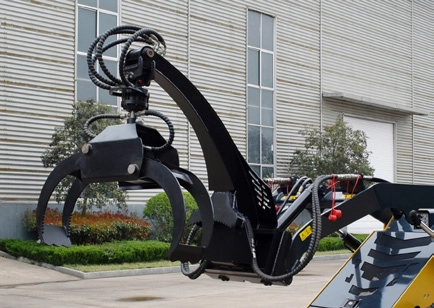

Rotary Clip
REQUEST A DEMO
The ML525Y mini skid steer is designed for demanding jobs across landscaping, construction, agriculture, property maintenance, and material handling. Complete the form below to share your application, working conditions, and attachment requirements, and our team will recommend a suitable machine configuration and provide a professional quotation.
